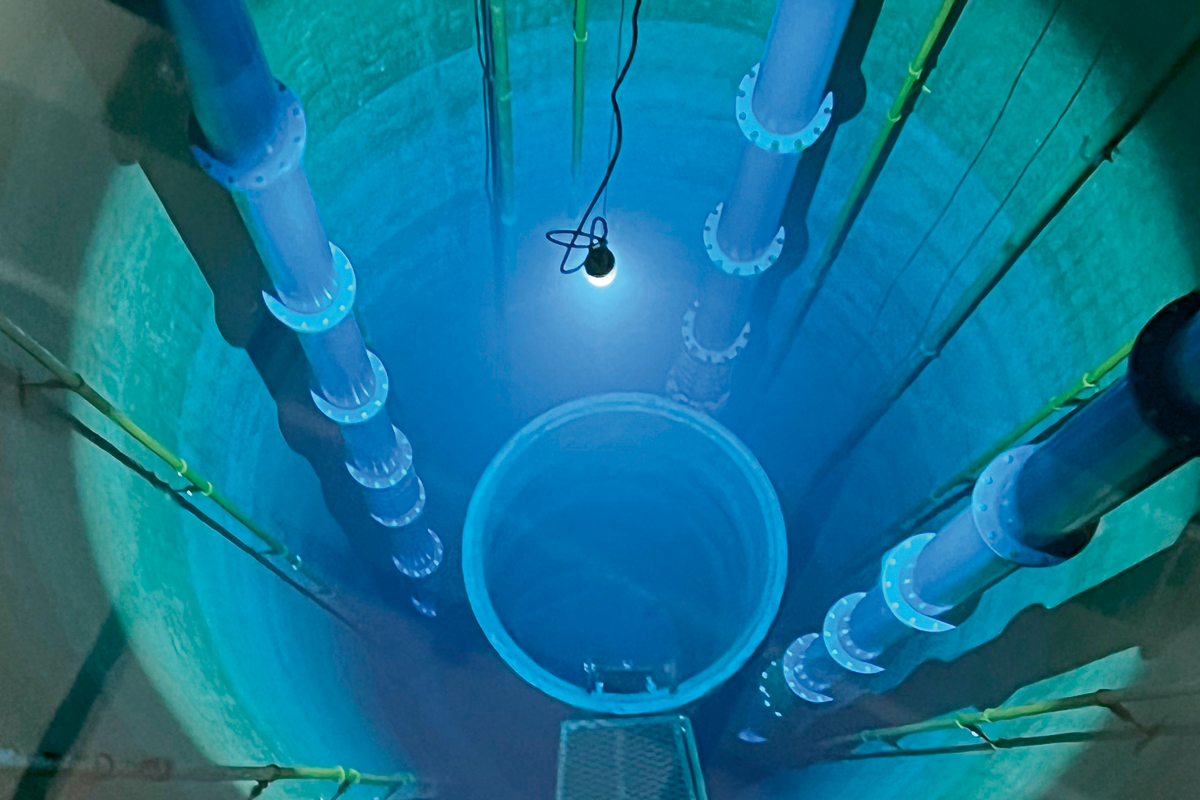

• INARI M mit Drahtseilaufhängung im Filterbrunnen der Stadt Dietikon

INARI M IP68/IP69K from Tamlux

A new spotlight for tough applications

Tamlux has developed INARI M especially for use in filter wells and reservoirs: This new spotlight meets the highest requirements in terms of tightness and robustness and is therefore also suitable for use in sewage treatment plants or outdoors.

INARI M proudly bears the "Made in Switzerland" label: the spotlight developed by Tamlux is manufactured entirely in Switzerland. Milled from a block, the housing impresses with its elegant design; high-quality V4A stainless steel and the cover made of transparent or satinised Plexiglas ensure maximum durability. All components that come into contact with water, including the cable gland, are certified in accordance with the KTW hygiene regulations.

For filter wells, reservoirs and more

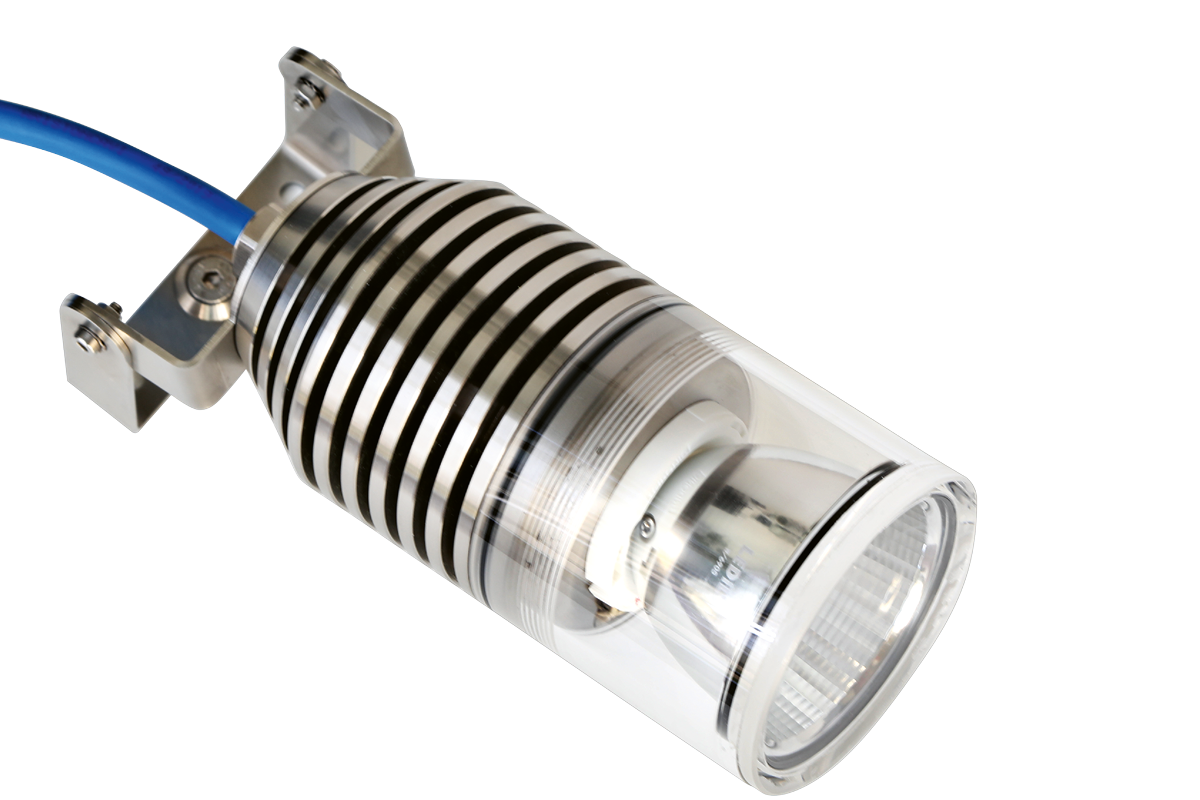

INARI M is ideal for illuminating deep filter wells: With the wire rope suspension, the spotlight can be safely lowered into a water depth of up to 30 metres. The 2.5 kg stainless steel housing serves as a weight. Because the suspension bracket, wire rope and thimble are also made of V4A stainless steel, these components are also extremely durable. INARI M is the perfect solution wherever the highest demands are made on robustness and tightness. Thanks to the mounting bracket, the spotlight can be fixed to walls or ceilings in any environment with a single screw. The housing with cooling fins guarantees optimum cooling of the LED module - even when mounted above water.

Targeted, powerful and reliable light

The swivel mechanism ensures precise alignment of the spotlight. In addition, the lighting can be precisely adjusted to the respective requirements: Reflectors with different beam angles enable a variety of different light cones - from 15° (spot) to 60° (wide beam). Without reflector, the beam angle is 120°; a frosted cover is used to limit glare. The LED module of INARI M has a high luminous efficacy: in above-water operation, the luminous flux of the spotlight is 5160 lumens - in underwater installation up to 8070 lumens. The LED module is supplied with light colour 840 as standard (other versions on request). The upstream converter required to operate the spotlight is placed in a control gear box (available for one or more converters); optionally, a converter encapsulated in the aluminium housing can also be used.

Innovative and reliable: Luminaires from Tamlux

Leuchten von Tamlux zeichnen sich aus durch innovatives Design, höchste Zuverlässigkeit und eine lange Luminaires from Tamlux are characterised by innovative design, maximum reliability and a long service life. Thanks to minimal maintenance requirements, they are particularly suitable for places that are difficult to access. Tamlux finds the optimal lighting solution for every object - with maximum investment security!
